The flexibility of the Adjuste MK2 detent system allows you to use of any lens from a 4.5mm fisheye right up to 105mm on a full-frame sensor for multi-row spherical panoramas and 300mm for single row panoramas.
4 stops- Lens Options: 4.5mm - 8mm
Fullframe Options: Shaved 10.5mm, Tokina 10-17mm
6 stops - Lens Options: 10mm - 12mm fisheye
8 stops - Lens Options: 14mm - 18mm
36 stops - Lens Options: 80mm - 105mm
6 stops - Lens Options: 10mm - 12mm fisheye
12 stops - Lens Options: 16mm - 20mm
18 stops - Lens Options: 24mm - 35mm
32 stops - Lens Options: 50mm - 70mm
16 stops - Lens Options: 28mm - 35mm
24 stops - Lens Options: 60mm - 80mm
48 stops - Lens Options: 135mm - 150mm
60 stops - Lens Options: 150mm - 200mm (minimum overlap)

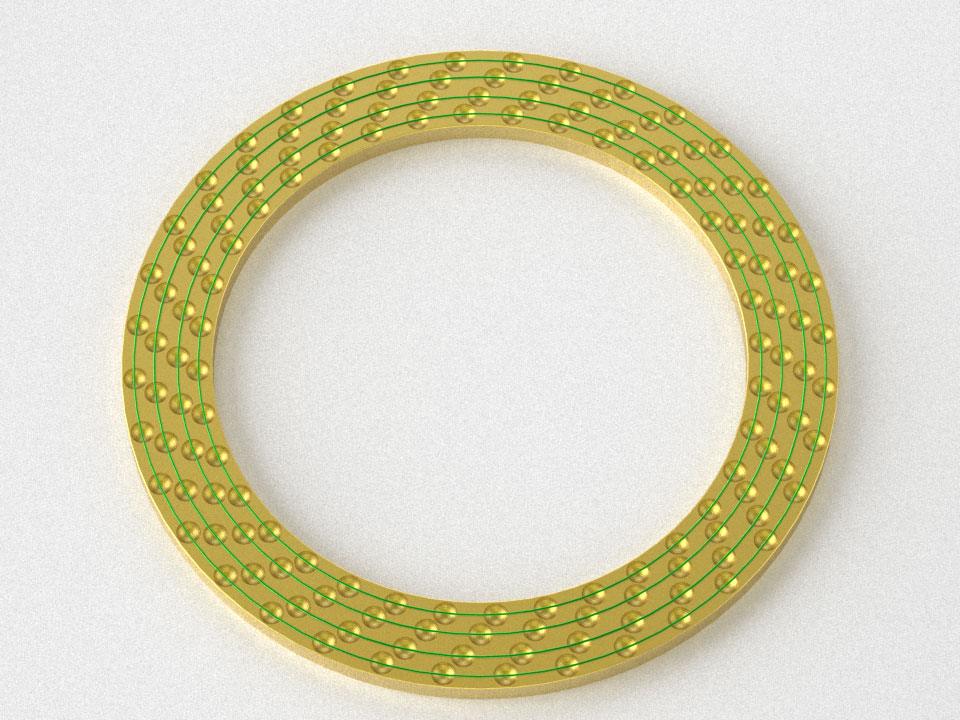

The four track 36-36-36-36 stop detent is designed to be used with 300-400mm lenses by combining the four tracks to create a 144 stop detent. When using 4 plungers at the same time it is advisable to use the four stainless plungers.
36 stops - Lens Options: 80mm - 105mm
36 stops - Lens Options: 80mm - 105mm
36 stops - Lens Options: 80mm - 105mm
36 stops - Lens Options: 80mm - 105mm
144 stops - Lens Options: 400mm
The four track 54-36-54-60 stop detent is designed to be used with 200-300mm lenses by combining the two tracks to create a 108 stop detent. When using 2 plungers at the same time it is advisable to use the four stainless plungers.
54 stops - Lens Options: 135mm - 150mm
36 stops - Lens Options: 80mm - 105mm
54 stops - Lens Options: 135mm - 150mm
60 stops - Lens Options: 150mm - 200mm (minimum overlap)
